A car battery plays a big role in starting your car. If the battery is weak, your car may crank slowly or not start at all. Many drivers face this problem, and it often happens at the worst time.
The good news is that testing a car battery is not hard. You don’t need special skills or an expensive tool. A small device called a multimeter is enough to check if the battery is healthy, weak, or needs replacement.
In this article, you will learn everything step by step about how to test a car battery with multimeter.
By the end, you will feel confident about checking your own car battery at home, even if you have never used a multimeter before.
What is a Battery?
A car battery is a box that stores electrical energy so your car can start and run its electrical parts. Most car batteries you find today are 12-volt lead-acid batteries. Inside each battery are six small sections called cells. Each cell creates about 2.1 volts. When you add the six cells together, you get about 12.6 volts when the battery is fully charged.
The battery does two main jobs. First, it gives a big burst of power to start the engine. Second, it keeps small electronics—like the clock, radio, and lights—running when the engine is off. It also helps the car’s system manage the electricity while driving.
Two simple numbers you should know:
- Voltage: How much electrical pressure the battery has. A full 12V car battery sits around 12.6–12.8 volts when it is at rest.
- Cold Cranking Amps (CCA): How much power the battery can deliver in a short time to start the engine in cold weather. The higher the CCA, the stronger the battery for starting a cold engine.
Batteries wear out over time. Chemicals inside break down and the battery cannot hold charge like before. Most car batteries last about 3–5 years, but heat, short drives, or deep discharges can shorten this life.
Also read: What Are The Best Batteries For Cold Weather?
What is a Multimeter?
A multimeter is a small, hand-held tool that measures electrical things. It can read voltage, current, and resistance. For testing car batteries, we mainly use it to read DC voltage. That tells us how much charge the battery currently has.
There are two common kinds of multimeters:
- Digital Multimeter (DMM): Shows numbers on a screen. Easy to read and simple to use. This is the type most people buy.
- Analog Multimeter: Uses a needle and a printed scale. It works, but it is harder to read.
On a multimeter you will see a dial or buttons. To test a car battery you set the meter to measure DC volts (often shown as “V” with a straight line or “V⎓”). If your meter asks for a range, pick the 20V range. That keeps the reading accurate for a 12V car battery.
A multimeter is safe, but treat it like a sharp tool. Make sure the probes (the metal tips) do not touch each other when connected to the battery. Follow safety notes in the next sections.

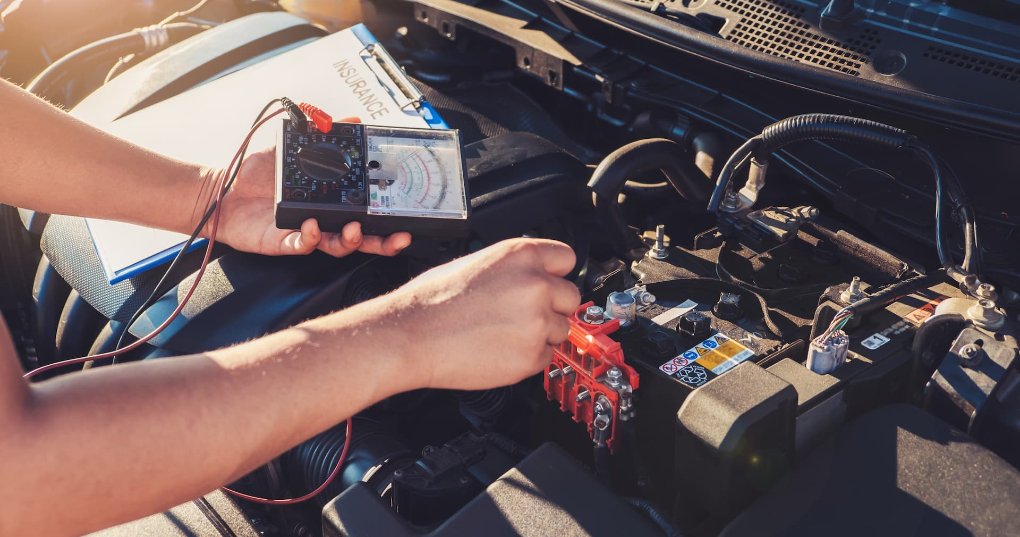

Why Test Your Car Battery?
Testing your battery is quick and gives clear answers. Here are the main reasons to test:
- Avoid getting stuck: You can spot a weak battery before it dies.
- Save money: You may only need a charge or small fix instead of a full replacement.
- Check your charging system: Testing with the engine running shows if the alternator is doing its job.
- Stay safe: A failing battery can leak acid or swell, which is dangerous.
- Plan ahead: Testing helps you replace the battery at a good time, not in an emergency.
If your car is older, if you live in hot or cold weather, or if you make many short trips, testing every 3–6 months is a good habit. Testing is one of the easiest maintenance steps you can do.
Step-by-Step Guide to Testing a Car Battery
Below is a careful, clear walk-through for testing a car battery with a multimeter. Read each step and work slowly. Keep your hands steady and wear gloves and eye protection if you have them.
Prepare and stay safe
Before you start, park the car on level ground. Turn off the engine, take the key out, and switch off all lights and accessories. Remove jewelry or rings so they do not touch the battery terminals. If the battery is under a cover, remove the cover first.
Let the car sit for at least 10–15 minutes after driving, if possible. This gives the battery time to rest. If you test right after a drive, the battery can show a higher reading because it was just charged by the alternator. That is a “surface charge” and can hide a weak battery.
Get the right tools
All you need are:
- A digital multimeter (recommended).
- Safety gloves and eye protection.
- A cloth to clean any grease or corrosion.
- Baking soda and water mix if you need to clean heavy corrosion (do this only if you are comfortable).
Locate and inspect the battery
Open the hood and find the battery. On some cars the battery is in the trunk or under a seat. You will see two terminals:
- Positive (+) — usually red.
- Negative (–) — usually black.
Look for cracks, leaks, swelling, or heavy rust. If the battery case is bulging or leaking acid, do not touch it. Replace it and take it to a shop for safe disposal.
Set the multimeter
Turn the multimeter dial to DC volts (V—). Pick the 20V range if the meter is manual-range. Connect the red probe to the meter’s V socket and black probe to the COM socket.
Measure the resting voltage (open-circuit voltage)
Hold the probe tips carefully. Touch the red probe to the positive terminal (+) and black probe to the negative terminal (–). Make sure the metal probe tip touches clean metal. Read the number.
A common voltage chart:
| Multimeter Reading | Battery Condition |
|---|---|
| 12.6 – 12.8 V | Fully charged (good) |
| 12.4 – 12.6 V | About 75% charged |
| 12.2 – 12.4 V | Around 50% charged — needs charge soon |
| 12.0 – 12.2 V | Low — weak battery |
| Below 12.0 V | Very low — likely needs replacement or a full charge |
Write down the exact reading. This is your baseline.
Test while starting the car (cranking test)
For the next check, you want to see how much the voltage drops when the starter motor runs. Keep the multimeter connected and have a helper turn the key to start the car, or use a remote starter if you have one.
Watch the multimeter while the engine cranks. A healthy battery will usually drop to somewhere around 9.6–10.5 volts during cranking. If the voltage drops below about 9.0–9.5 volts, the battery may be weak, or there may be a problem with the starter or connections.
If the car does not crank at all and the multimeter shows a reading well below 9V, the battery is likely dead.
Test with engine running (alternator check)
Now start the engine and keep the multimeter connected. With the engine running, the voltage should rise to show the alternator charging the battery. Typical charging voltage is:
| Condition | Expected Voltage |
|---|---|
| Alternator charging properly | 13.7 – 14.7 V |
| Slightly low charging | 13.3 – 13.6 V (may be okay but worth watching) |
| Not charging | Below 13.3 V (problem likely with alternator or belt) |
| Overcharging | Above 15.0 V (bad — can harm the battery and electronics) |
If charging voltage is correct (about 14.0 V), the alternator is doing its job. If it is too low, the alternator or its connections may be faulty. If it is too high, the voltage regulator may be bad.
Use a load tester for deeper testing (optional)
A load tester will apply a heavy load to the battery and measure how well it holds up. Load testing is a good way to find batteries that look fine at rest but fail under real use. Many auto shops have load testers and will do a battery load test for free or a small fee.
Also read: How Long Will a 100Ah Battery Last
How Do I Know if My Car Battery is Bad?
A battery can be bad in different ways. Sometimes the voltage looks okay when the car sits, but the battery fails under load. Here are clear signs your battery may be bad:
- Very low resting voltage: If the battery reads well below 12.0 volts at rest, it is weak.
- Huge voltage drop while cranking: If the voltage falls below about 9.0 volts during starting, the battery is not healthy.
- Battery is old: If the battery is more than 4–5 years old, its chance of failure is higher. Keep records of the purchase or installation date.
- Slow cranking or no crank: The engine turns slowly or not at all when you try to start.
- Bulged or cracked case: Physical damage or swelling is a sign of internal failure.
- Smell of rotten eggs: This indicates leaking acid. Replace immediately.
- Frequent need for jump-starts: If the battery needs constant help, replace it.
- Cannot hold a charge: The battery quickly loses charge even after a full charge.
If you see any of these, plan to replace the battery or take it to a trusted mechanic for a full diagnosis.
What Causes a Car Battery to Drain?
Several things can make your battery lose charge faster than normal. Knowing these causes helps you stop them.
Leaving lights or accessories on
It sounds obvious, but interior lights, trunk lights, or even a map light left on can drain a battery overnight. Modern cars also have many small electronic systems that draw power when the car is off. Always make sure lights and accessories are off.
Parasitic electrical drain
Some parts of your car still draw small amounts of power when it’s off. If something is wrongly wired or stuck on—like a glove box light or aftermarket alarm—it can cause a large drain. This is the parasitic drain we mentioned earlier.
Short trips and low driving time
Short drives do not give the alternator enough time to fully recharge the battery. If you only drive five or ten minutes a day, over time the battery gets weaker.
Weather extremes
Very cold weather slows the chemical reactions inside the battery. A battery that is fine in summer can fail in a hard winter. Hot weather causes the liquid inside to evaporate and speeds up chemical breakdown. Both extremes shorten battery life.
Old age and sulfation
Over time, lead sulfate crystals form on the battery plates. This process, called sulfation, makes the battery less able to hold a charge. If a battery is left discharged for long periods, sulfation becomes worse and the battery can fail.
Bad charging system
If the alternator or regulator fails, the battery does not get charged while driving. This leaves you with a drained battery even after long drives.
Tips to Keep Your Car Battery in Top Condition
A little care goes a long way. Here are easy, practical tips to keep your battery healthy and extend its life.
Drive more often and for longer
If you do many short trips, try to add one 20–30 minute drive at higher speeds a few times a week. That helps the alternator fully recharge the battery.
Keep terminals clean and tight
Corrosion on terminals blocks the flow of electricity. Clean connectors gently with a brush and a solution of baking soda and water. After cleaning, tighten the terminals so they do not wobble.
Use a battery maintainer when parked for long
If you store your car for a month or more, use a trickle charger or battery maintainer. These devices keep the battery topped up and avoid deep discharge.
Turn off electronics when you leave the car
Make it a habit to switch off radios, chargers, and lights before you exit the car. Don’t leave phone chargers plugged in if the car may be unused for a while.
Test battery health regularly
Check battery voltage every 3–6 months with your multimeter. If the reading is below 12.4 volts, consider charging the battery or having it checked.
Replace at the right time
If your battery is more than 3–5 years old, plan to replace it before it fails. Keep the purchase date written on the battery or logged on your phone.
Be careful with jump-starts
Jump-starting is fine in emergencies, but repeated jump-starts stress the battery and can shorten life. If you jump-start often, replace the battery.
Also read: 12 Best Golf Cart Batteries That Last the Longest
Common Mistakes When Testing a Battery
People often make simple errors when testing a battery with a multimeter. Avoid these to get correct results.
- Testing right after the car ran: This can show a higher reading because of surface charge. Let the car rest 10–15 minutes.
- Wrong meter setting: Make sure the meter is set to DC volts, not AC volts or ohms.
- Poor probe contact: If the probes touch paint or corroded metal, the reading will be wrong. Clean terminals and touch bare metal.
- Touching probes together: This short-circuits the probes and can damage the meter or the battery.
- Assuming voltage equals health: A battery may show 12.5V at rest but still fail under load. Always check voltage under load if you suspect a problem.
Advanced Checks You Can Do
If you want to go a bit deeper, here are more advanced tests. Only try them if you feel comfortable and follow safety steps.
Specific gravity test (requires hydrometer)
A hydrometer measures the specific gravity of each cell’s electrolyte. This shows state-of-charge on a per-cell basis. If one cell reads low while others are fine, the battery may be failing.
Parasitic drain tracing
If the parasitic draw test shows high current, pull fuses one at a time and watch when the draw drops. This helps find the circuit that causes the drain.
Voltage ripple test
A bad alternator diode can let AC ripple into the DC system. Use a scope or a special test to look for big voltage ripples while the engine runs. This is usually a shop test.
Battery load tester
A load tester simulates starting the engine and measures how well the battery holds voltage under heavy load. Many shops will run this test and give you a pass/fail result.
FAQ’s
Q: How often should I test my car battery?
A: Test every three to six months. If your battery is older than three years, test more often. Also test if you notice slow starts or dim lights.
Q: Can I test a battery without a multimeter?
A: You can get a rough sense by turning on headlights and watching brightness or trying to start the car. But these are not precise. A multimeter gives clear numbers and is cheap and reliable.
Q: Is 12.4 volts okay for a car battery?
A: 12.4 volts means the battery is about 75% charged. It is not dangerous but you should charge it soon or check why it is below full.
Q: What does it mean if my battery reads 12.0 volts?
A: That is low. It means the battery is weak and needs charging. If it does not hold charge, replace it.
Q: My battery reads 12.6V but the car won’t start. Why?
A: The battery can look fine when resting but fail under load. Check voltage while cranking. Also check starter connections and ground cables.
Q: Will extreme cold ruin my battery?
A: Cold makes batteries weaker because chemical reactions slow down. A battery with low charge is more likely to fail in cold weather.
Q: Can I recharge a battery with a multimeter?
A: No. A multimeter only measures voltage and current. To charge a battery, use a battery charger or have the car’s alternator charge it while driving.
Q: How much does a new battery cost?
A: Battery price depends on size, brand, and CCA. Expect a range from budget options to premium batteries. Include installation costs if you want the shop to install it.
